Drill chucks

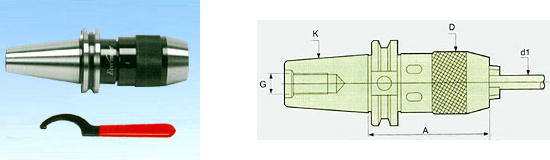

CNC KEYLESS DRILL CHUCKS WITH SHANK

	The shank and keyless Drill are combined as one body, so that the Drill Chuck will not be fallen out when heavy cutting is being performed.
	The drill will not be fallen (dropped) out when the machine main spindle is instantly stopped.
	The Run-out is within 0.05mm and high precision can maintained over a long period of time.
	Short and compact design.

BT SHANK, DIN 69871A, CAT

K	Clamping Capacity mm	A		D	N.W/G.W	Order No.	Unit Price
K	Clamping Capacity mm	MIN mm	MAX m	D	N.W/G.W	Order No.	Unit Price
30	0-8	75	85	36	700	20001
40	0-8	80	90	36	1000	20003
	0-13	95	110	51	1750	2004
	3-16	113	128	57	2150	20005
50	0-13	105	120	51	4450	20008
50	3-16	100	125	57	4850	20009

BT SHANK, DIN 69871A, CAT

K	Clamping Capacity mm	A		D	N.W/G.W kgs	Order No.	Unit Price
K	Clamping Capacity mm	MIN mm	MAX m	D	N.W/G.W kgs	Order No.	Unit Price
30	0-8	70	80	36	650	21001
40	0-8	70	80	36	920	21003
	0-13	85	100	51	1600	21004
	3-16	105	120	57	2030	21005
50	0-13	95	110	51	4200	21008
50	3-16	100	115	57	4600	21009

BT Shank KPU Drill Chuck

SK Shank KPU Drill Chuck

CAT Shank KPU Drill Chuck

NT Shank KPU Drill Chuck

DIN2080 Shank KPU Drill Chuck
