VDI Toolhanders
Drill chucks

DRIVEN TOOLS FOR CNC LATHES

Axial spindleheads with coupling to DIN 1809



To be used for collet 6499		 Model :
DA-20-1809-ER20
DA-30-1809-ER25
DA-40-1809-ER32
DA-50-1809-ER40
DA-60-1809-ER50
Applications:
For Endmilling, Drilling, Reaming
For clockwise and anti-clockwise roation
External coolant supply
Collet is not included.


Axial spindleheads with coupling to DIN 5482


To be used for collet 6499
Applications:
For Endmilling, Drilling, Reaming
For clockwise and anti-clockwise roation
External coolant supply
Collet is not included.
Model :
DA-30-5482-B15x12
DA-30-5482-B17x14
DA-40-5482-B17x14
DA-40-5482-B20x17
DA-50-5482-B20x17
DA-50-5482-B25x22
DA-60-5482-B25x22

Spur couping


MT: Frontal transmission coupling gear is of fixed version
IT: Frontal transmission coupling gear is of retractable version
Model :
DA20-MT
DA20-IT
DA30-MT
DA30-IT
 DA40-MT
DA40-IT
DA50-MT
DA50-IT

DIN - 5482 1809

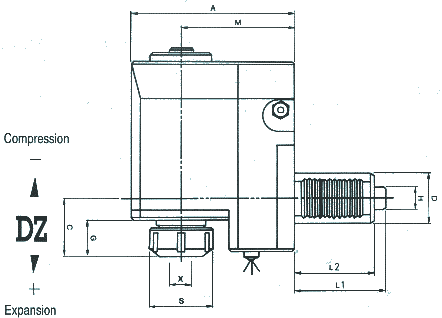

Radial Tool Heads [set back] For Tapping use with collet
