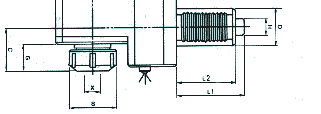

DIN - 1809 Radoal Tool Heads [Set back][ for Tapping with collet ] with coupling to DIN 5482 Applications : For Tapping For clockwise and anti-clockwise rotation External connlant supply Collet is not included Model : TBRR-30-1809 TBRR-40-1809 TBRR-50-1809 TBRL-30-1809 TBRL-30-1809 TBRL-50-1809

DIN - 5482 Radial Tool Heads with coupling to DIN 5482 Applications : For Endmiling, Drilling, Reaming For clockwise and anti-clockwise rotation External connlant supply Collet is not included Model : DFRR-30-B15 x 12 DFRR-40-B20 x 17 DFRR-50-B25 x 22 DFRR-40-B17 x 14 DFRR-50-B20 x 17 DFRL-50-B25 x 22

DIN - 1809 Radial Tool Heads with coupling to DIN 1809 Applications : For Endmiling, Drilling, Reaming For clockwise and anti-clockwise rotation External connlant supply Collet is not included Model : DFRR-30-1809 DFRR-40-1809 DFRR-50--1809 DFRL-30-1809 DFRL-40-1809 DFRL-50-1809

DIN - 5482 1809 Radial Tool Heads with coupling DIN-5482 or DIN-1809 Spur coupling MT: Frontal transmission coupling gear is of fixed version IT: Frontal transmission coupling gear is of retractable version Model : DBRR - 20 - MT DBRR - 30 - MT DBRR - 40 - MT DBRR - 50 - MT DBRR - 20 - I T DBRR - 30 - I T DBRR - 40 - I T DBRR - 50 - I T DBRL - 20 - MT DBRL - 30 - MT DBRL - 40 - MT DBRL - 50 - MT DBRL - 20 - I T DBRL - 30 - I T DBRL - 40 - I T DBRL - 50 - I T

DIN - 5482 Radoal Tool Heads [Set back] with coupling to DIN 5482 Applications : For Endmiling, Drilling, Reaming For clockwise and anti-clockwise rotation External connlant supply Collet is not included Model : DBRR-20-W10 DBRR-30-B17x14 DBRR-40-B20x17 DBRR-50-B25 x 22 DBRL-20-W10 DBRL-30-B17x14 DBRL-40-B20x17 DBRL-50-B25 x 22 DBRR-30-B15x12 DBRR-40-B17x14 DBRR-50-B20x17 DBRR-60-B25 x 22 DBRL-30-B15x12 DBRL-40-B17x14 DBRL-50-B20x17 DBRL-60-B25 x 22

DIN - 1089 Radoal Tool Heads [Set back] with coupling to DIN 1809 Applications : For Endmiling, Drilling, Reaming For clockwise and anti-clockwise rotation External connlant supply Collet is not included Model : DBRR-20-1809 DBRL-30-1809 DBRR-50-1809 DBRR-60-1809 DBRL-20-1809 DBRR-40--1809 DBRL-50-1809 DBRL-60-1809 DBRR-30-1809 DBRL-40-1809
